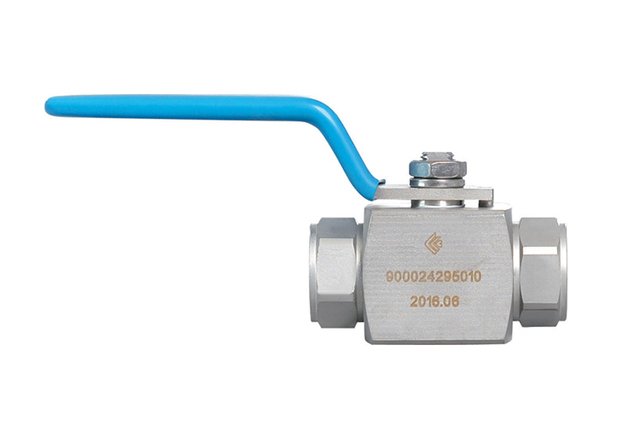

Description

Main Parameters

Nominal Pressure: 42.0 MPa

Nominal Diameter: 15, 20, 25 mm

Applicable Media: NG, O2, N2, Ar, etc.

Applicable Temperature: -40°C ~ +100°C

Connection Type: Threaded, Welded

Testing and Inspection: GB/T26480

Main Component Materials

Valve Body, Valve Cover, Valve Stem, Ball: Stainless Steel

Seal Material: PEEK
